Autoclave

It consists of a high pressure boiler made from special alloy steel, inside dia. 154x430 mm high, receiving a holding rack for 10 cement specimens.

  • SKU : G827-E070
  • Manufacturer: MATEST
Contact us for details
Description

SOUNDNESS (EXPANSION) OF PORTLAND CEMENT

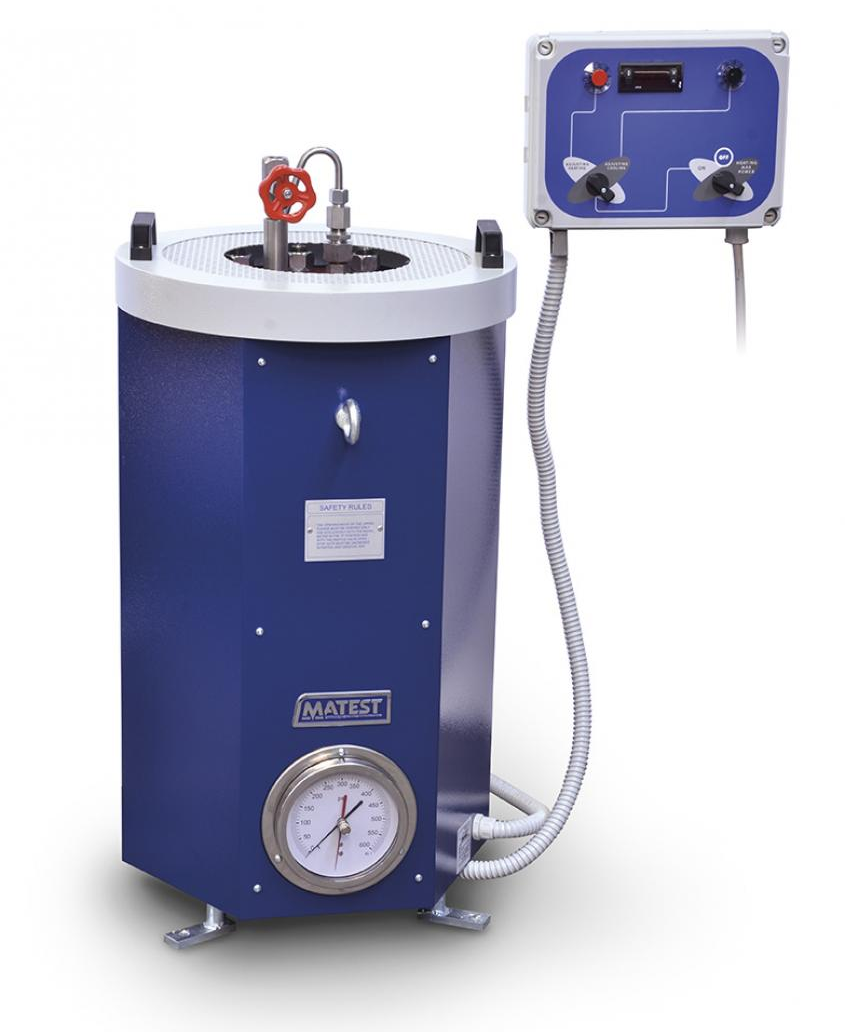

It consists of a high pressure boiler made from special alloy steel, inside dia. 154×430 mm high, receiving a holding rack for 10 cement specimens. The heating system is achieved by electric resistances.

The separate control panel encloses a digital thermometer to visualize the boiler temperature, pressure gauge scale 0 – 600 psi with built in pressure regulator and power switches.

Supplied complete with rack for holding the specimens and safety valve with ISPEL calibration certificate. Not sellable on CE market.



  • Power supply: 230V 1ph 50Hz 3500W 295psi
  • Dimensions: 490x490x980 mm
  • Weight: 150 Kg approx.



  • Comparable to ASTM C151
  • AASHTO T107
