Description

Bench for the study of process control field from basic to advanced levels.

It includes valves, pump, tanks, sensors, and drivers.

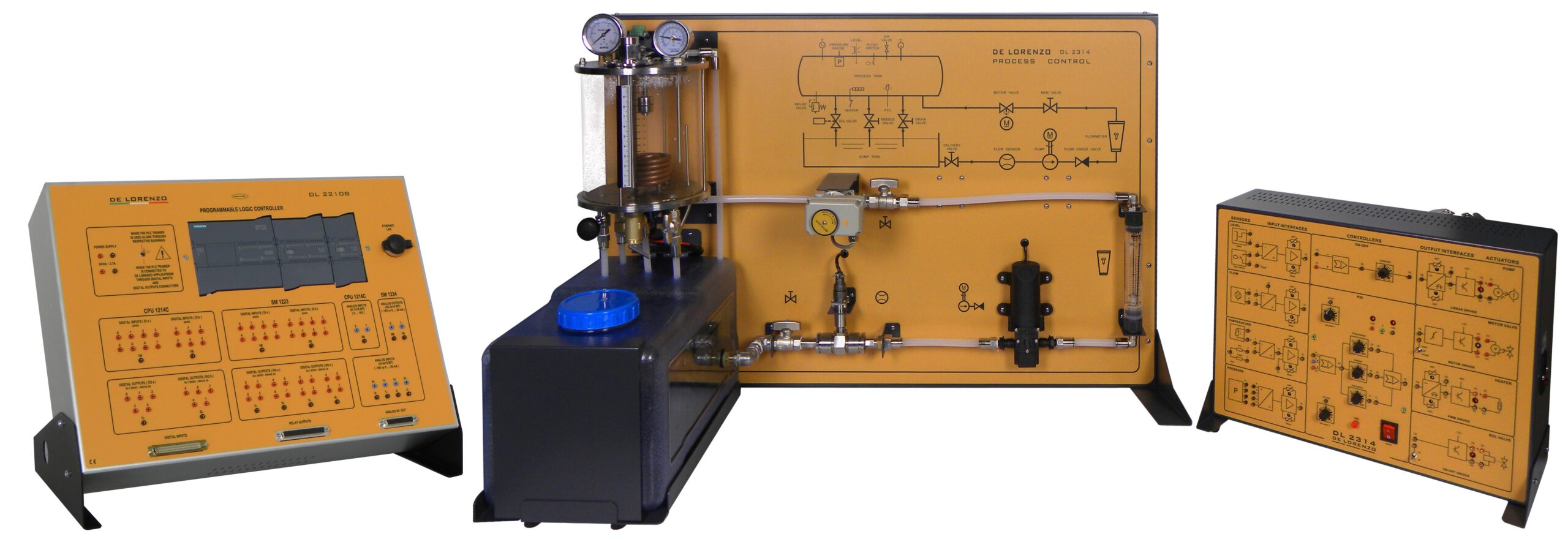

It consists of an experiment module (process panel), a control module with built-in power supply (control panel) and a Programmable Logic Controller (PLC).

With this trainer, the students will be guided step by step into the following experiments; how to calibrate a sensor, how to obtain the characteristic of a static process and time constant, how to control a process by ON-OFF, Proportional, Proportional-Integral, Proportional derivative, Proportional-Integral-Derivative, and how to perform PLC applications for level, temperature, flow, and pressure control systems.
