Description

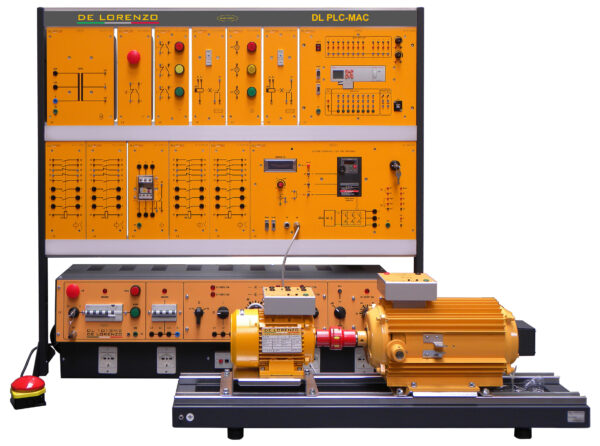

The DL PLC-MAC is a multipurpose bench for the study of PLC programming techniques used to start and control a three-phase asynchronous electrical motor using an inverter drive.

The starting and control of an induction asynchronous motor can be tested in two different modes:

• Manual operation using timed relays or an inverter.
• Automatic operation using a PLC to control the inverter drive and contactors.
