Earthing of the power supply line

Improper use of electrical household appliances can be fatal - usually due to carelessness or ignorance. A model person is used to illustrate which touches in the electrical circuit are life-threatening.

  • SKU : P1377300
  • Manufacturer: Phywe
Contact us for details
Description

Principle

Improper use of electrical household appliances can be fatal – usually due to carelessness or ignorance. A model person is used to illustrate which touches in the electrical circuit are life-threatening.

Tasks

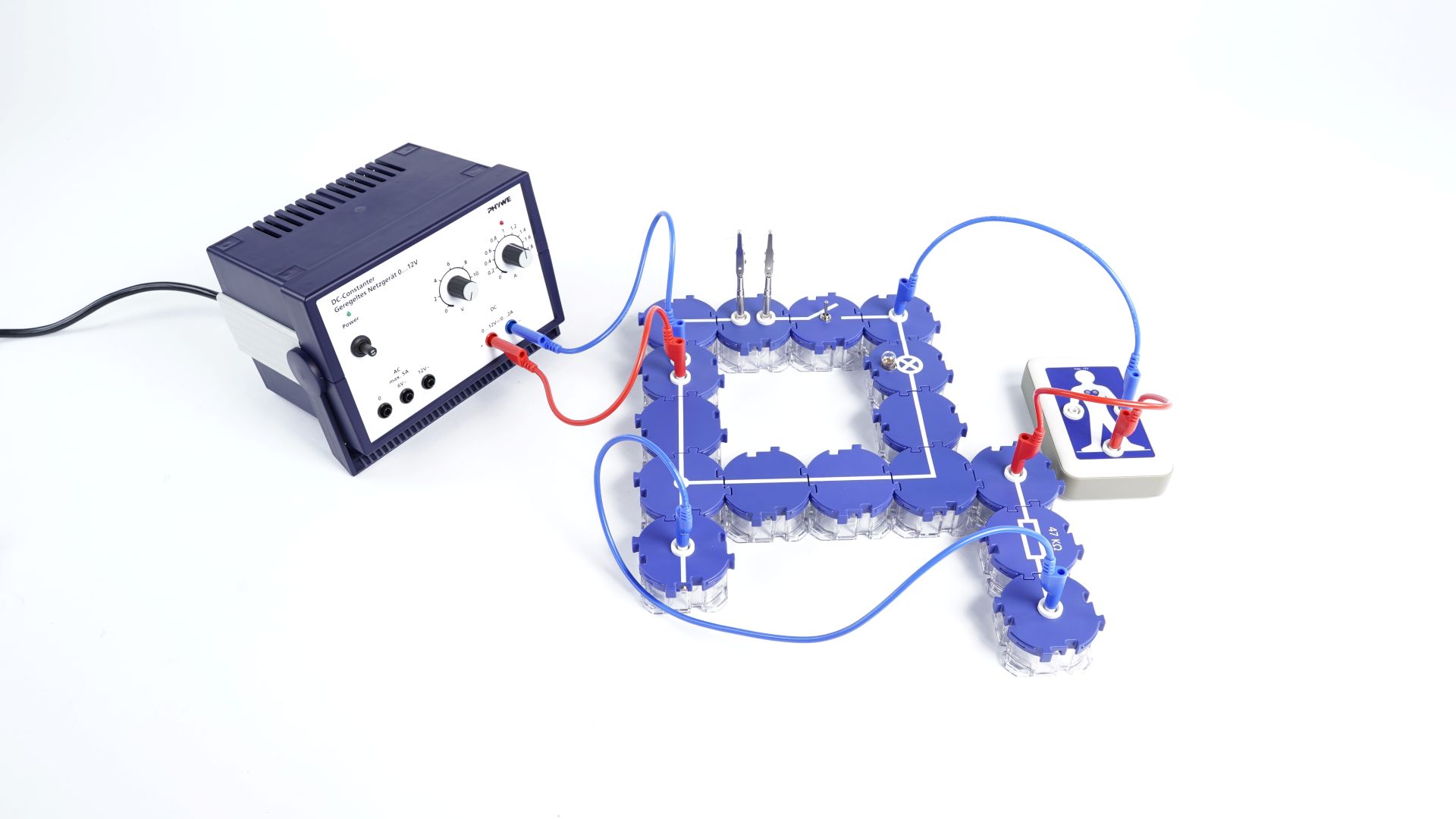

  1. Build an electrical circuit with a fuse, switch and light bulb. In a power supply network, there is an L conductor and an earthed N conductor.
  2. Use the model person to investigate the dangers posed by electric current and the earthing of the neutral conductor.

Learning objectives

The students should use the experiment to recognize the dangers of electric current.

Benefits

  • No additional cable connections between the building blocks needed – clear arragned and quick setup
  • Contact saftey due to puzzle blocks system
  • Corrosion-free gold plated contacts
  • Doubled earning sucess: Electric circuit diagram on top, real components can be seen unterside

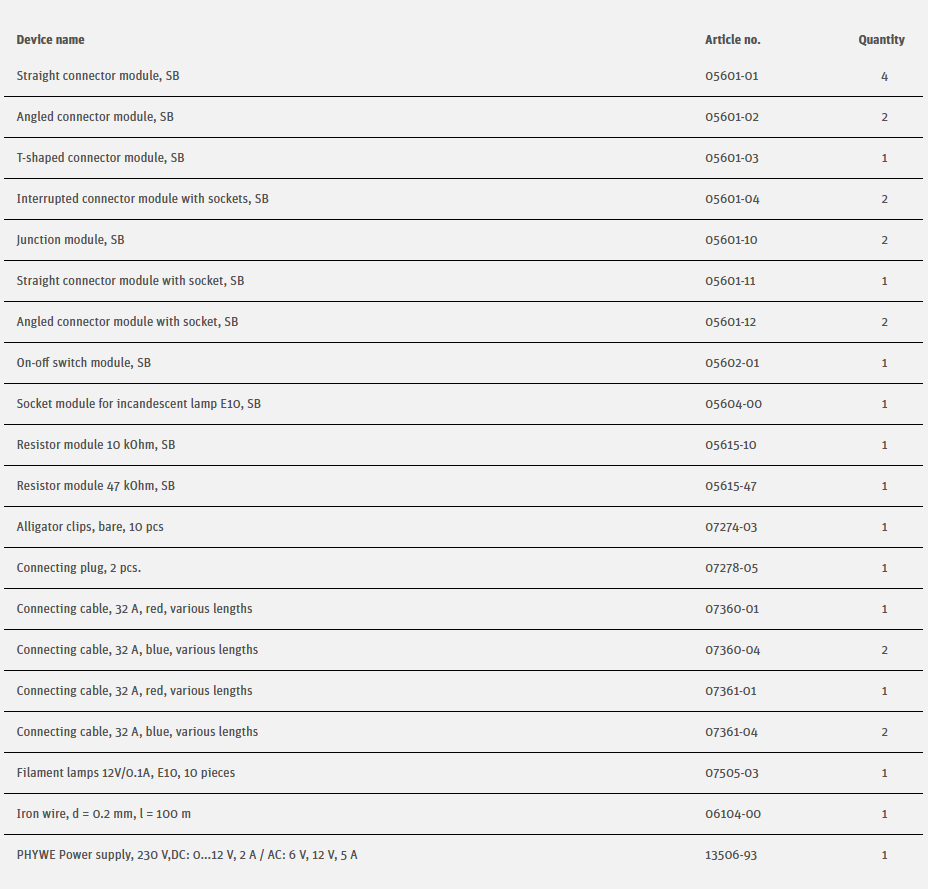

Scope of Delivery
