Description

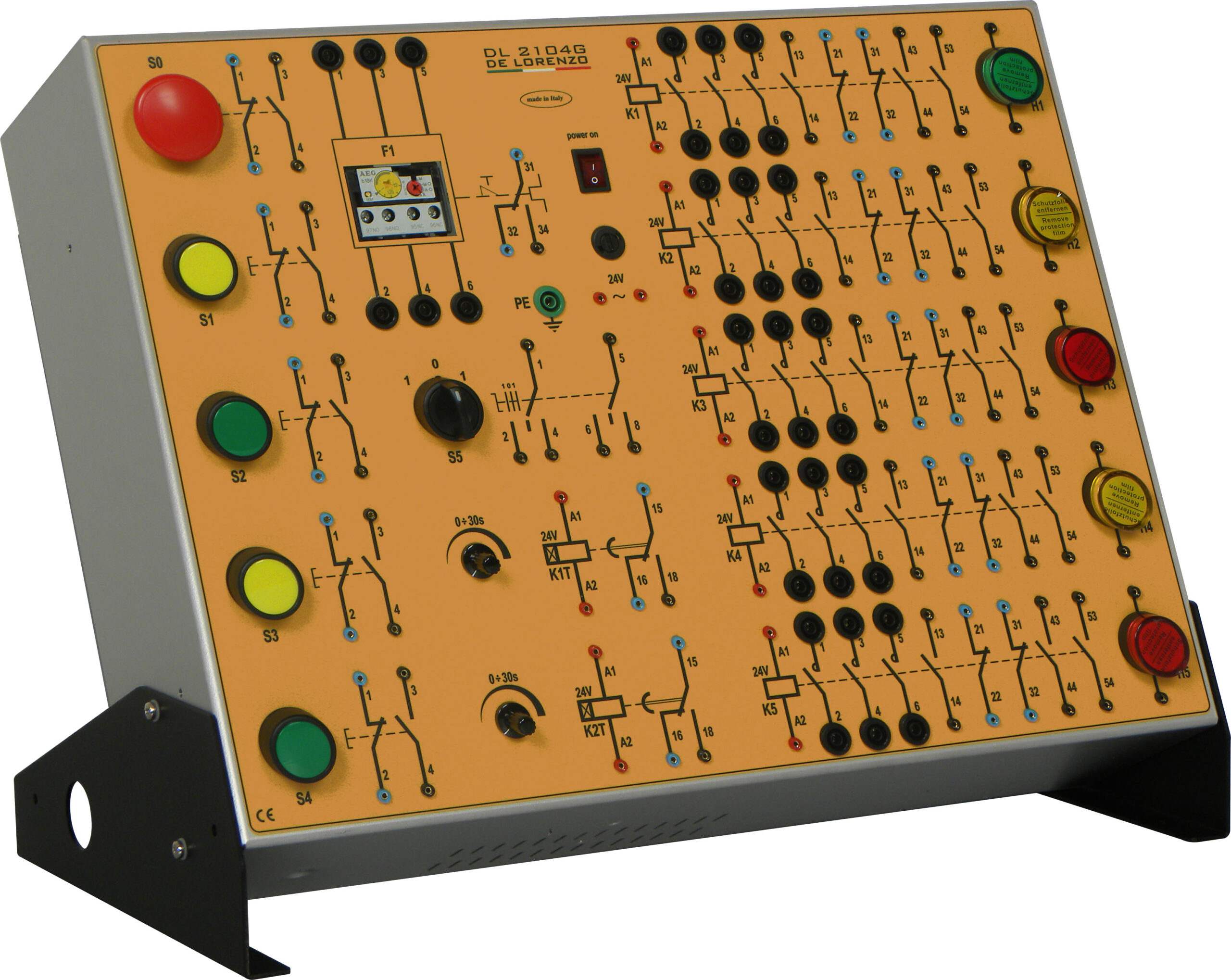

With this board, the students can perform experiments with components normally used in industrial electrical environment.

The components on the front panel can be wired together through 2 mm terminals for what concerns the low voltage controls, and through 4 mm safety terminals for the connections to the mains or for further applications.

All the components are identified through clear synoptic diagrams showing their types and symbols.

On the rear side of the board, there are switches to allow for the introduction of faults by the teacher.
