Description

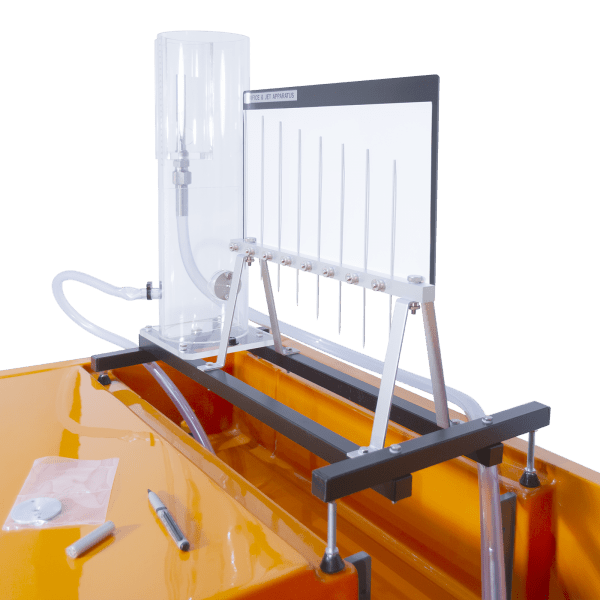

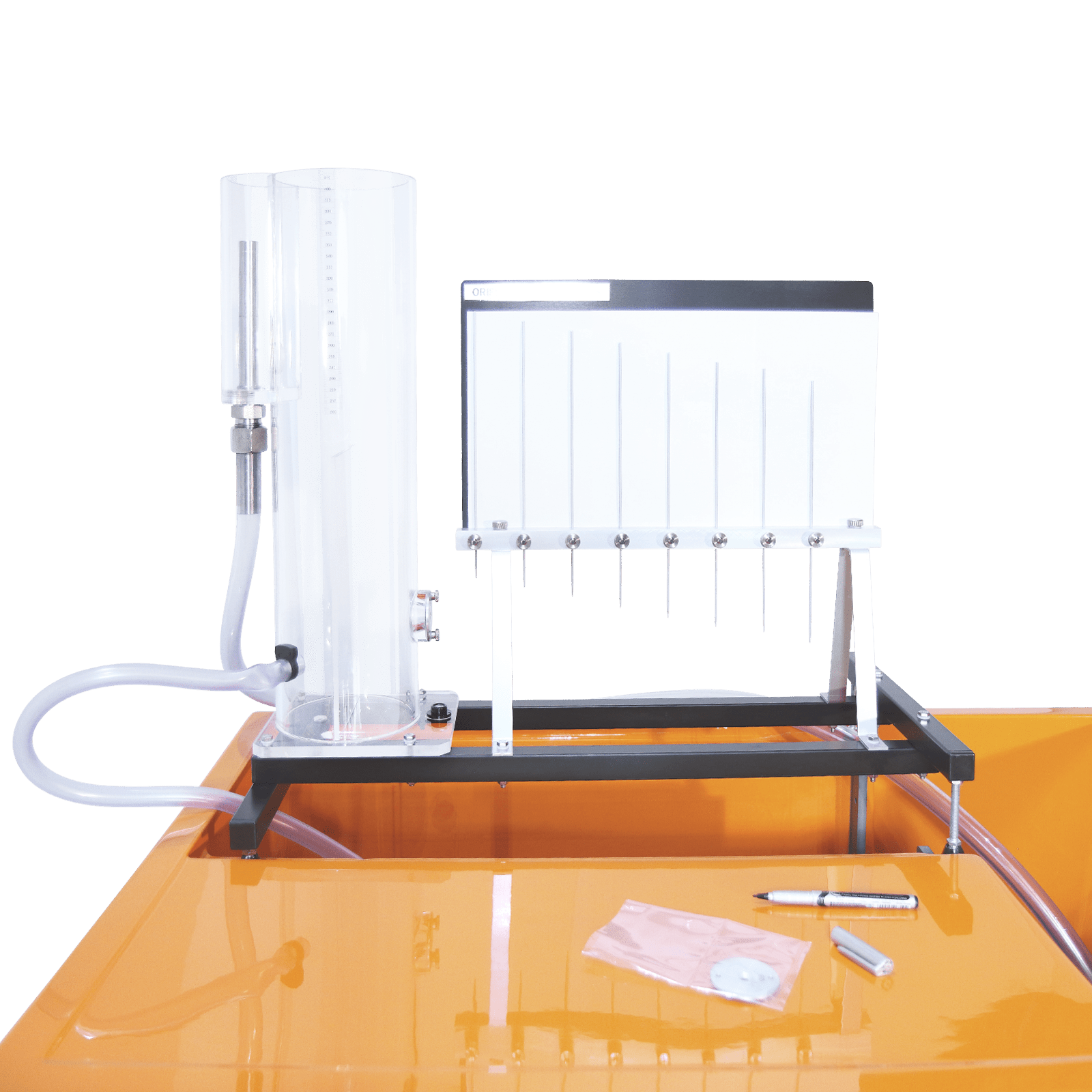

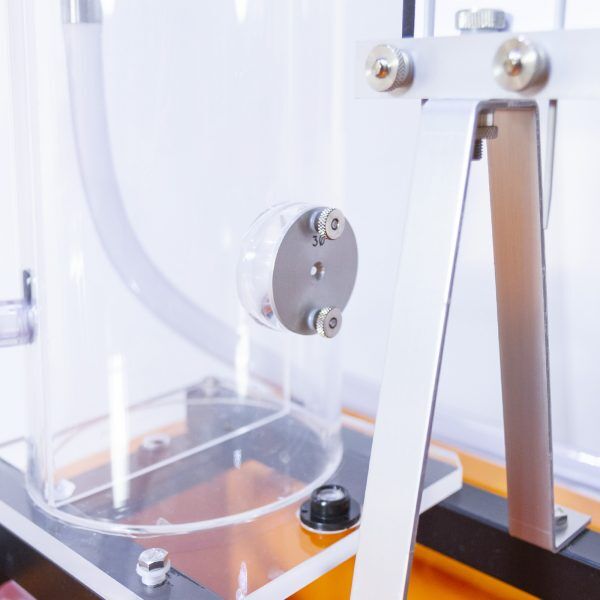

The Orifice & Free Jet Flow accessory incorporates a constant head tank fed with water from the hydraulics bench. The orifice is installed at the base of this tank by means of a special wall fitting which provides a flush inside surface.

The head is maintained at a constant value by an adjustable overflow pipe and is indicated by a level scale. A series of adjustable probes enable the path followed by the jet to be ascertained.

Adjustable feet permit levelling.

Experimental Content

• Establishing the coefficient of velocity for a small orifice
• Finding the coefficient of discharge for a small orifice with flow under constant head and flow under varying head
• Comparing the measured trajectory of a jet with that predicted by simple theory of mechanics
• Effect of tank level on jet outlet velocity

Technical Specifications

• Orifice diameters: 3.0mm and 6.0mm
• Jet trajectory probes: 8
• Max constant head: 410mm

Requires Hydraulics Bench Service unit F1-10/F1-10-2
