Description

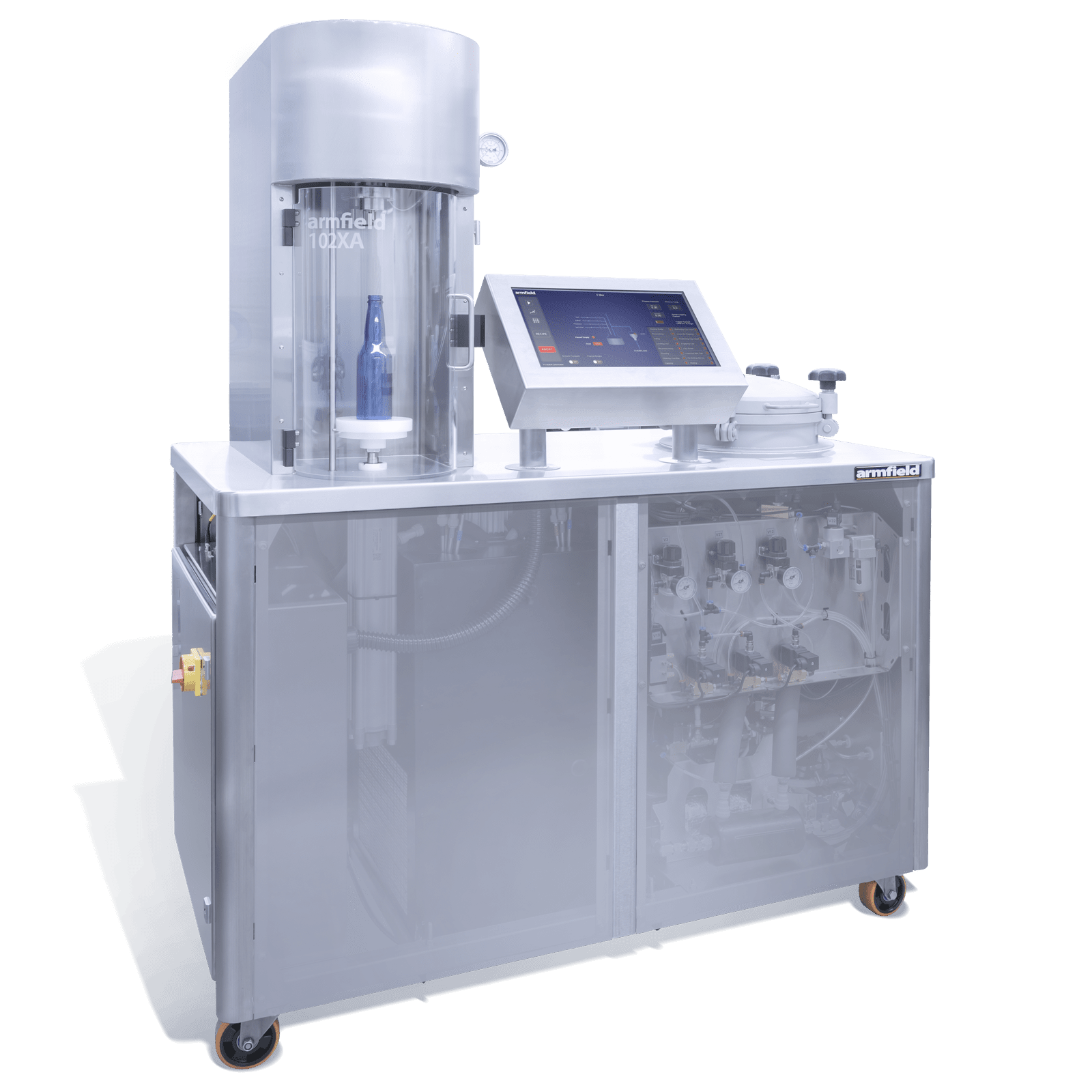

The FT102XA is the latest in high accuracy carbonation and filling technology. You can carbonate a premixed product or water and syrup in a post mix configuration.
Filling soft and alcoholic beverages into PET, bioplastic, glass and cans with screw capping, crown capping and now an integral can seamer.

This FT102XA has many new updates including:

• Reduced minimum batch volumes
• Ability to carbonate highly foaming products
• Internally mounted chiller to reduce space requirement in your laboratory

Other updates include the ability to measure the Dissolved Oxygen and CO₂  directly

Features & Benefits

Features:

• Accurate carbonation levels in excess of 12g/l (± 0.1g/l)

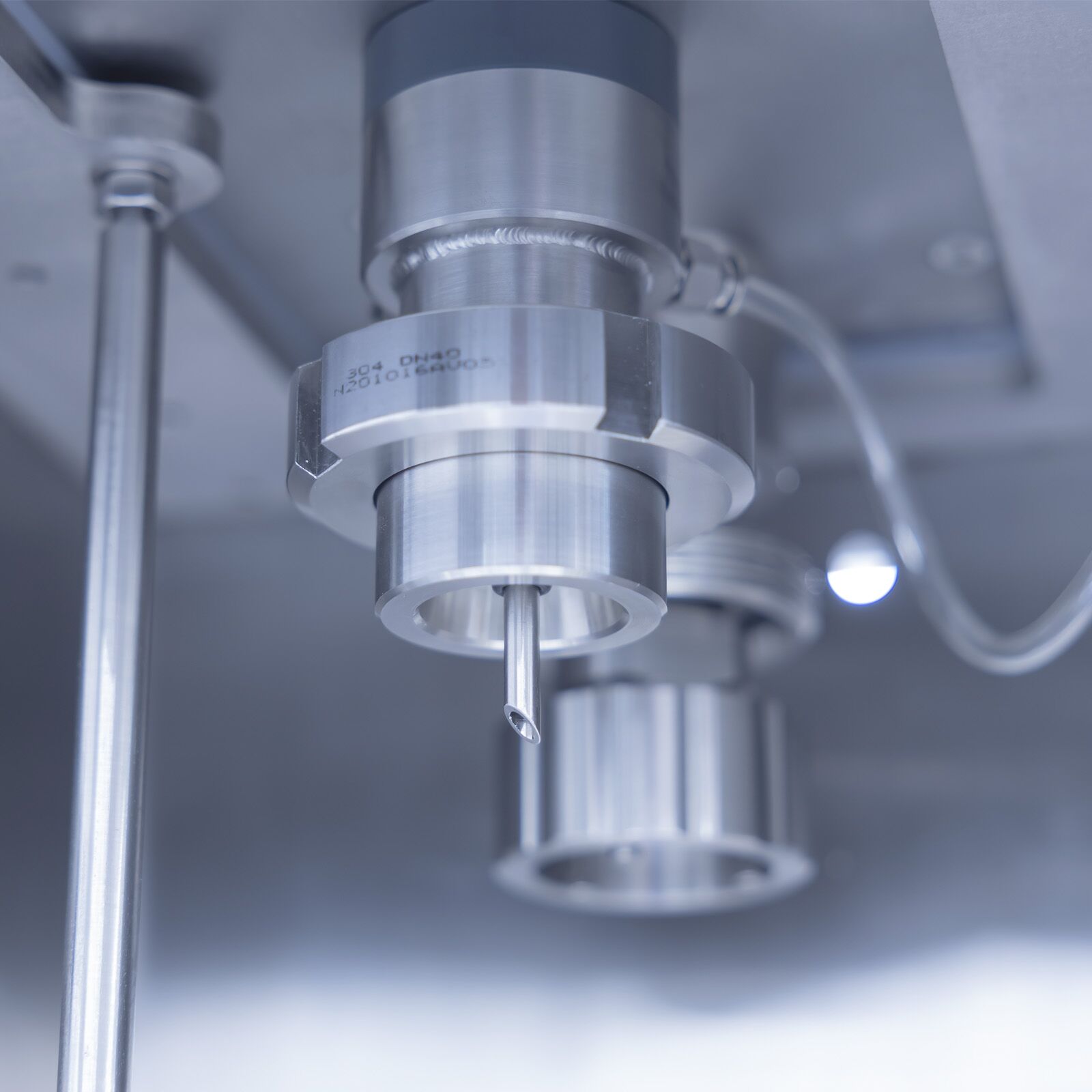

• Cans, PET and glass bottle filling
• Screw, crown, and Rip-cap capping

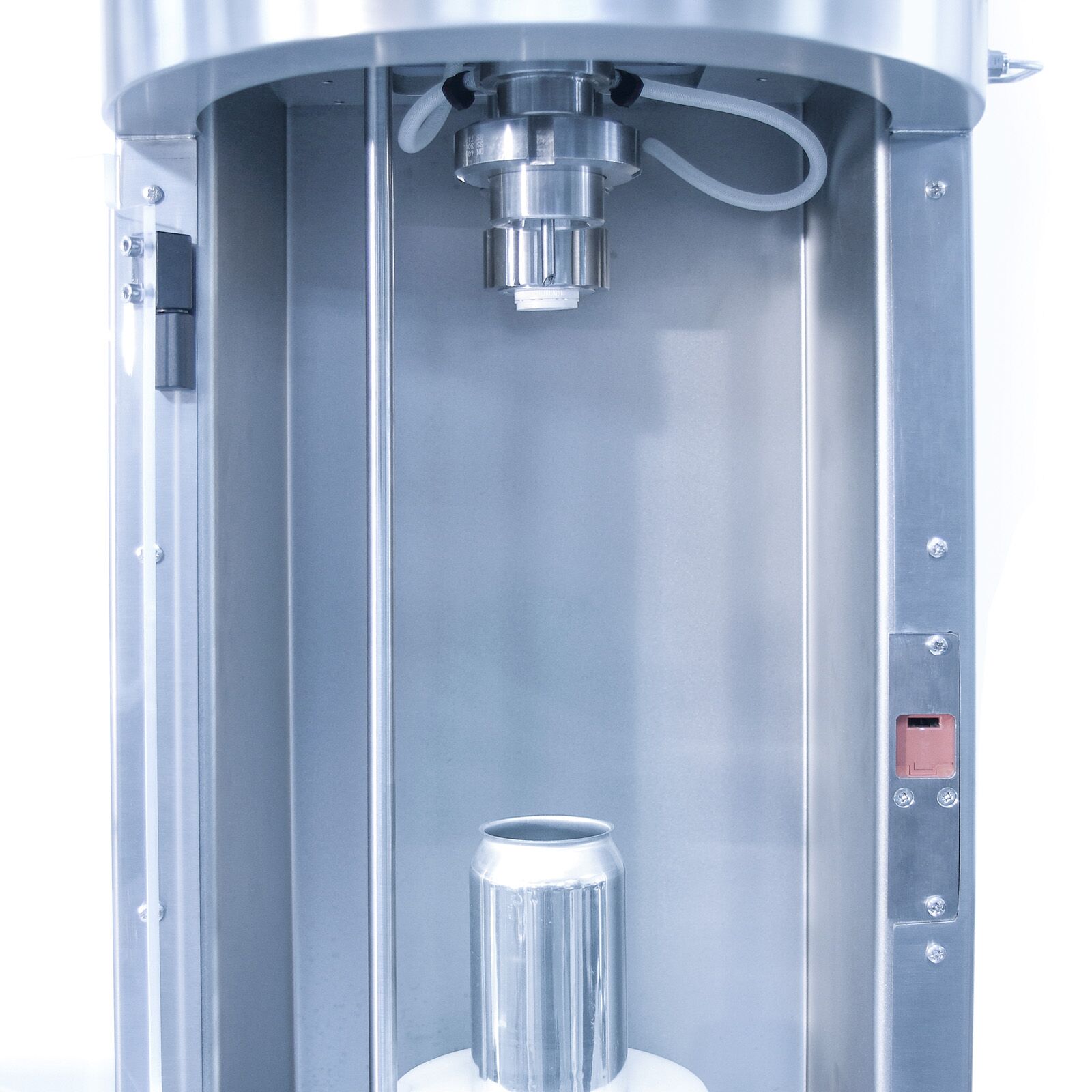

• Can seaming
• CO₂ recycling for environmentally friendly processing
• Deaeration
• Vessel purging
• New vacuum system compatible with high-foaming products
• In-bottle pressure measurement
• Pre-mixing and post-mixing capability

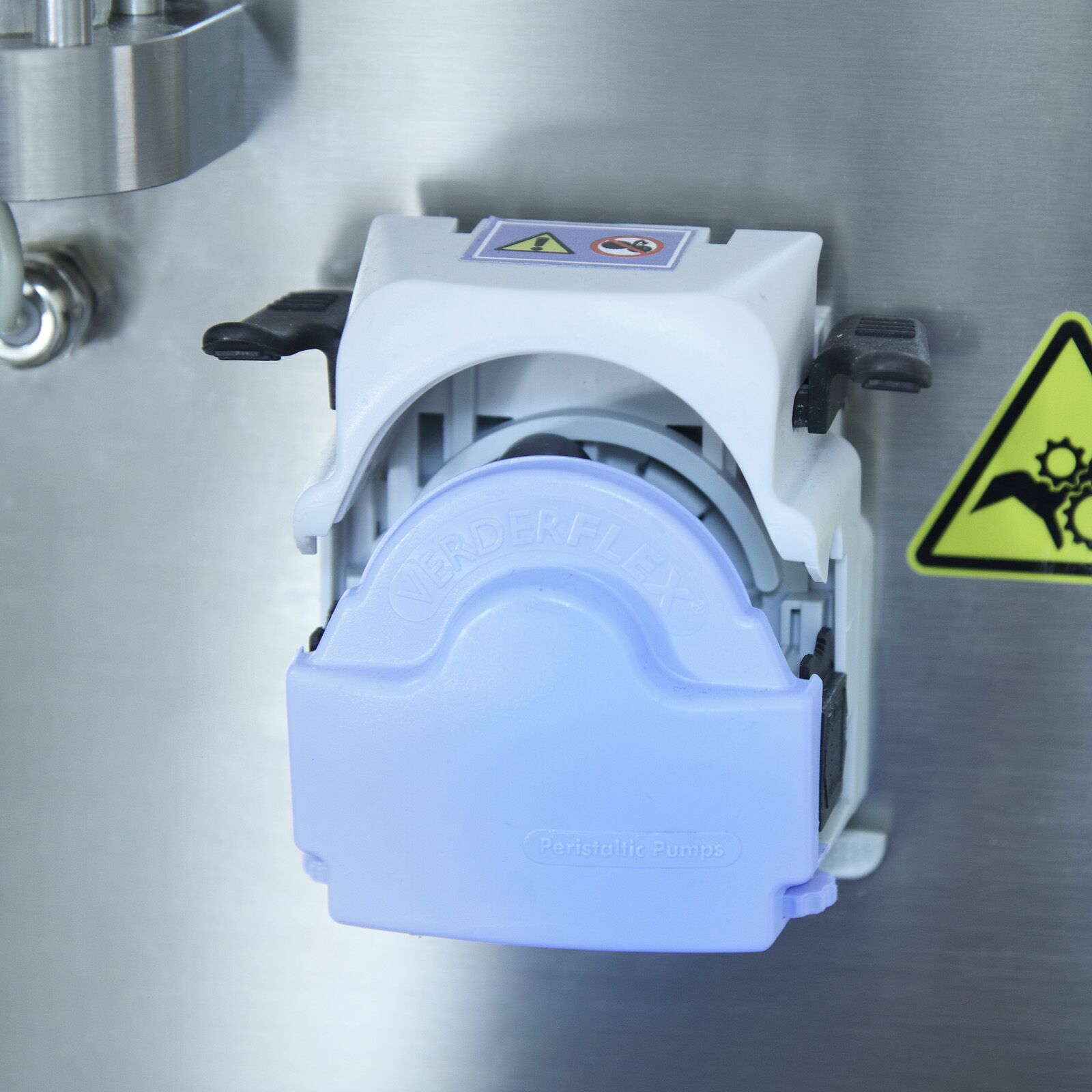

• Syrup dosing into the bottle
• ArmBUS control system with 32 process recipes and flexibility of computer control over PLC control
• Full data capture through ArmBUS data viewer (exportable to Excel)

Benefits:

• Reduced movement of bottle increases the accuracy and reliability of carbonation
• On-board high-efficiency chiller reduces space required in laboratory
• Removable side panels and IP65 electrical cabinet for easy access to internal components and spray down when required
• Can operate as standalone unit or with the continuous feed vessel FT102XA-44
• No need for an external chiller or ice water supply

Requirements

Electricity:

FT102Xa-A 230V 50Hz

FT102XA-G 230V 60Hz

• CO₂ supply with manual regulator, 6 bar
• Nitrogen supply with manual regulator, 6 bar (if used)
• Compressed air supply with manual regulator, 6 bar
• Water for chiller on commissioning
• Drainage

Technical Specifications

Gas content:            0-12 g/l

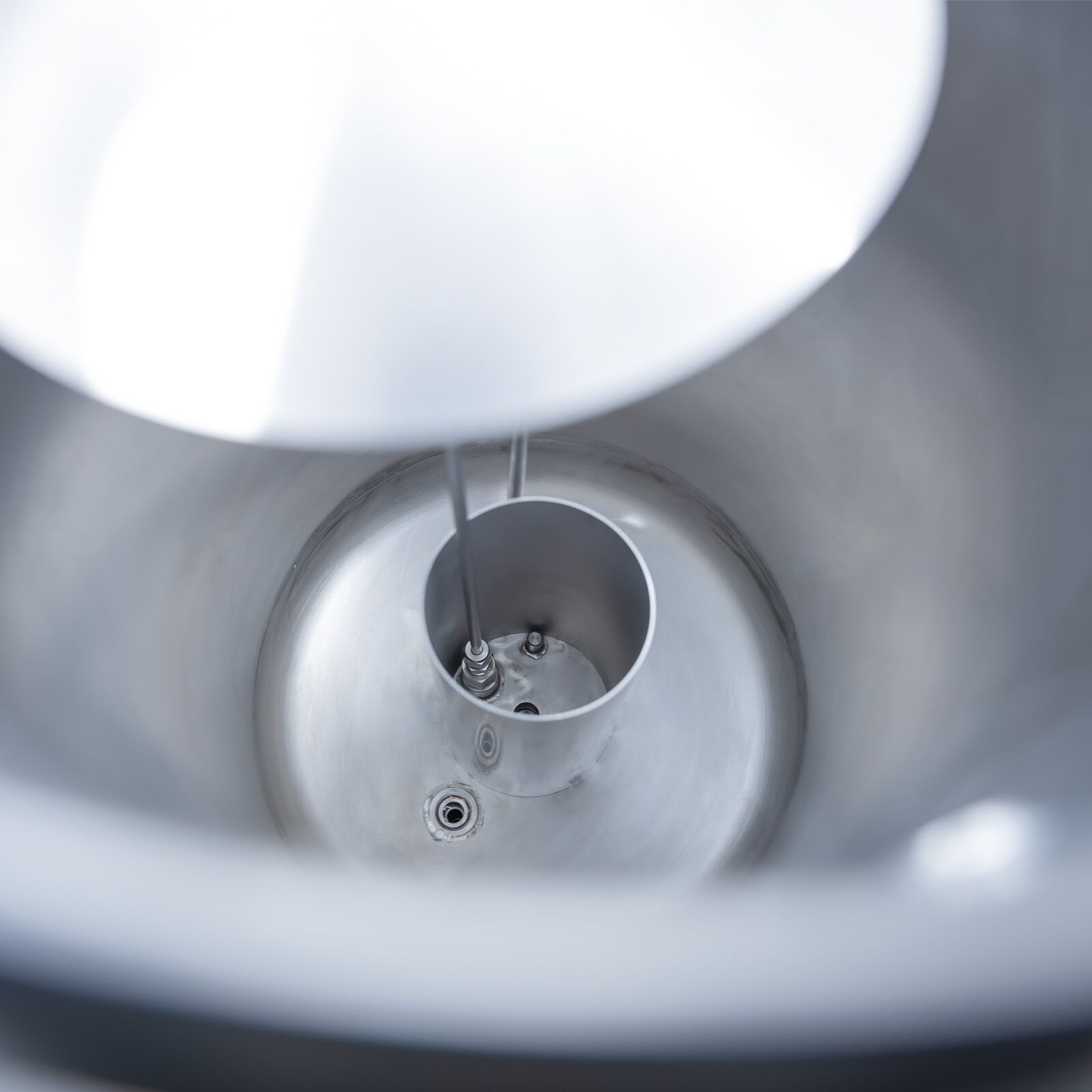

Vessel capacity:     15 litres or 30 litres working capacity
Capping Methods:  Screw, Crown, Can Lid, Rip-Cap
Gases:                     CO₂, N₂ or any safe, non-flammable alternatives or mixture
Contact surfaces:   316L stainless steel, food-grade silicone, PTFE, borosilicate glass and other food-safe materials
Operation methods: Batch or Semi-continuous
Minimum batch volume: 1 – 3 litres (depending on vessel volume)
Maximum vessel pressure: 4 bar

Length: 1.4m
Width:   0.75m
Height:  1.75m
