In this experiment you will develop a rule about how the light is attenuated when it passes through coloured liquids.
Contact us for details
Principle
In this experiment you will develop a rule about how the light is attenuated when it passes through coloured liquids.
Benefits
Tasks
How is light attenuated by liquids? If light passes through a substance, irrespective of wether it is solid or liquid, it is, in general, less intense when it leaves than when it entered.

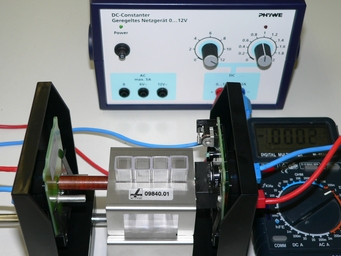

| Device name | Article no. | Quantity |
|---|---|---|
| Support base, variable | 02001-00 | 1 |
| Stand rods, stainless steel, various sizes | 02037-00 | 2 |
| Slide mount without angle scale | 09851-02 | 2 |
| Diaphragm holder, attachable | 11604-09 | 2 |
| Macro-cuvettes, PS, 4ml,100 pcs | 35663-10 | 4 |
| Universal bench | 09840-00 | 1 |
| Cell holder | 09840-01 | 1 |
| LED – red, with series resistor and 4 mm plugs | 08613-00 | 1 |
| Light sensor with amplifier, adjustable | 09852-70 | 1 |
| Power supply, 5 V DC | 09852-99 | 1 |
| Stray light tube | 09852-71 | 1 |
| Stray light tube for LED, Di = 8 mm, l = 40 mm | 09852-01 | 1 |
| PHYWE Power supply, 230 V,DC: 0…12 V, 2 A / AC: 6 V, 12 V, 5 A | 13506-93 | 1 |
| PHYWE Digital multimeter, 600V AC/DC, 10A AC/DC, 20 MΩ, 200 µF, 20 kHz, −20°C…760°C | 07122-00 | 1 |
| Connecting cable, 32 A, red, various lengths | 07362-01 | 2 |
| Connecting cable, 32 A, blue, various lengths | 07362-04 | 2 |
