Description

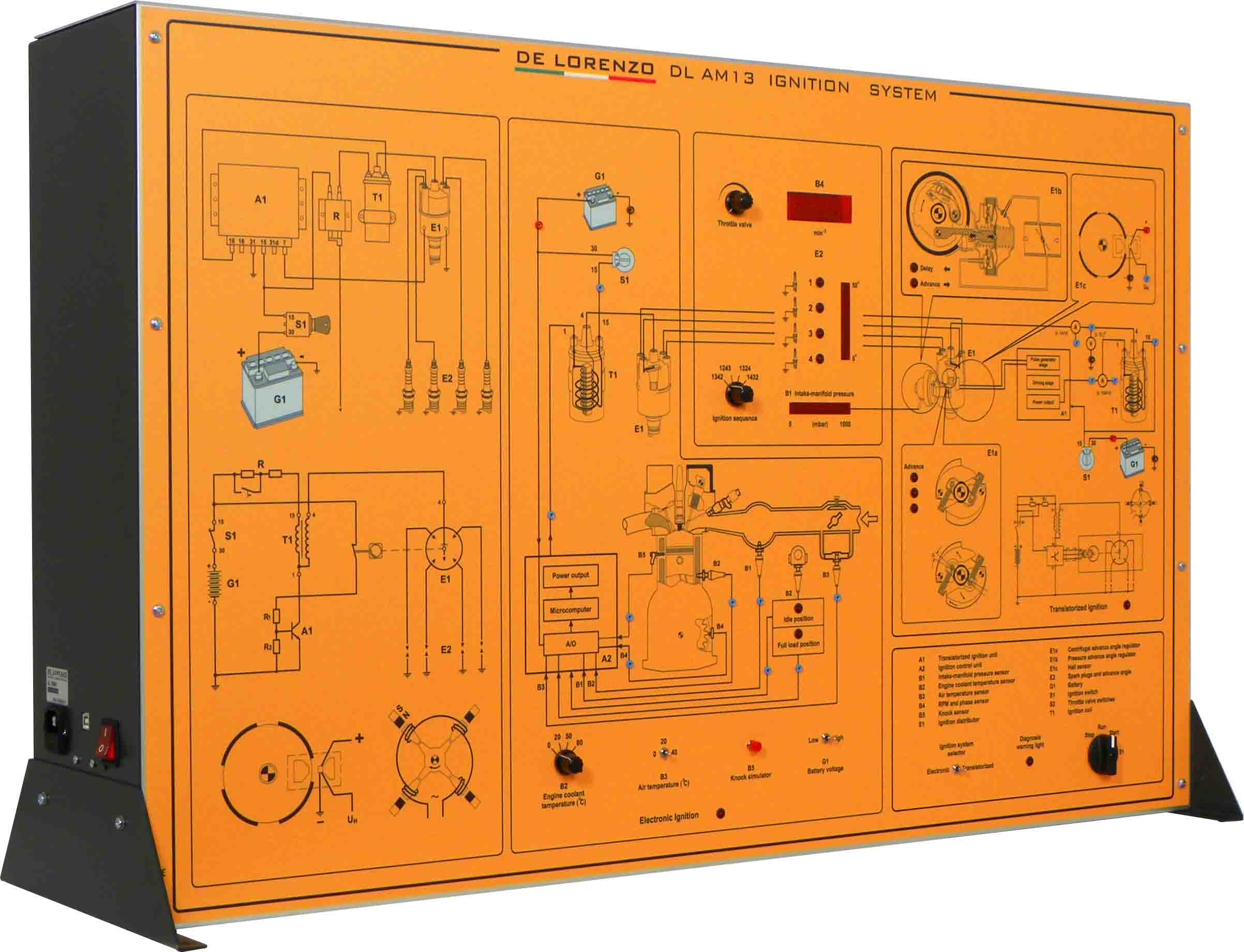

This simulation panel has been specially designed and realized to allow for a complete and easy learning of the techniques and of the electronic devices used for a correct ignition in the motor vehicle.

This simulator shows how modern cars ignition systems operate.

It is possible to simulate the following systems:

• Transistor based ignition controlled through Hall transducer and electronic board for the automatic adjustment of current and closing angle
• Electronic ignition with transducer of the rpm on the engine shaft and adjustment of the knock.

All relative signals, such as the output of Hall sensor, knock sensor output, engine speed, the refrigerator temperature, MAP output, A/D input, voltage and current of initial and secondary ignition, stroboscope trigger, end to test points.
