Polarimetry

The rotation of the plane of polarisation through a sugar solution measured with a half-shade  polarimeter and the reaction rate constant for the inversion of cane sugar determined.

  • SKU : P2250200
  • Manufacturer: Phywe
Contact us for details
Description

Principle

The rotation of the plane of polarisation through a sugar solution measured with a half-shade  polarimeter and the reaction rate constant for the inversion of cane sugar determined.

Benefits

  • Even transparent fluids can change the properties of light passing them
  • Find out how fast one type of sugar changes into another one
  • Use optical methods, involving the plane of polarisation, to observe chemical processes

Tasks

  1. To determine the specific rotation of cane sugar (sucrose) and lactose by measuring the rotation of various solutions of known concentration.
  2. To determine the reaction rate constant when cane sugar is transformed into invert sugar.

Learning objectives

  • Half-shade principle
  • Optical rotatory power
  • Optical activity
  • Saccharimetry
  • Specific rotation
  • Reaction rate
  • Weber-Fechner law

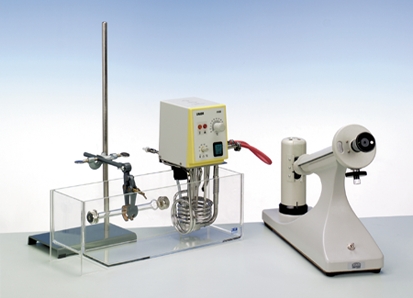

Scope of Delivery
Device name Article no. Quantity
Polarimeter, LED, 590 nm 35907-99 1
Immersion thermostat Alpha A, 230 V 08493-93 1
External circulation set for thermostat Alpha A 08493-02 1
Bath for thermostat, makrolon 08487-02 1
Digital stopwatch, 24 h, 1/100 s and 1 s 24025-00 1
Crucible tongs, 200 mm, stainless steel 36013-01 1
Beaker, 250 ml, plastic (PP) 09820-04 2
Graduated cylinders, plastic, various sizes 36629-01 2
Graduated beaker, 1000 ml, plastic (PP) 36640-00 1
Funnels, plastic, various sizes 36891-00 1
Spoon, with spatula end, 180 mm, plastic 38833-00 1
Glass stirring rod, d = 8 mm, l = approx. 300 mm 40485-06 1
Pipettes with rubber cap, various sizes 64821-00 1
Balance OHAUS LG 311, 4 beams, 0…311 g 44007-31 1
Tubing connector, ID 6-10mm 47516-01 2
