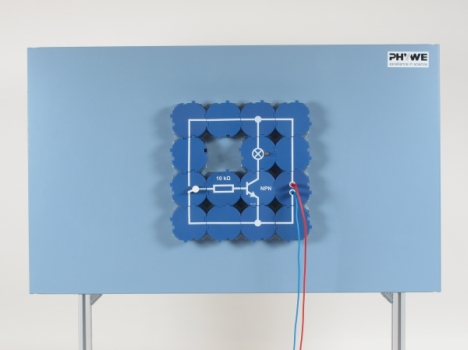

The NPN transistor

A demonstration is to show that a current can only flow from the emitter to the collector of a npn-transistor when the base is connected to the positive terminal of a direct current source, so that the blocking effect of the base-emitter barrier layer is overcome.

  • SKU : P1383100
  • Manufacturer: Phywe
Contact us for details
Description

Principle

A demonstration is to show that a current can only flow from the emitter to the collector of a npn-transistor when the base is connected to the positive terminal of a direct current source, so that the blocking effect of the base-emitter barrier layer is overcome.

Benefits

  • No additional cable connections between the building blocks needed – clear arragned and quick setup
  • Contact saftey due to puzzle blocks system
  • Corrosion-free gold plated contacts
  • Doubled earning sucess: Electric circuit diagram on top, real components can be seen unterside

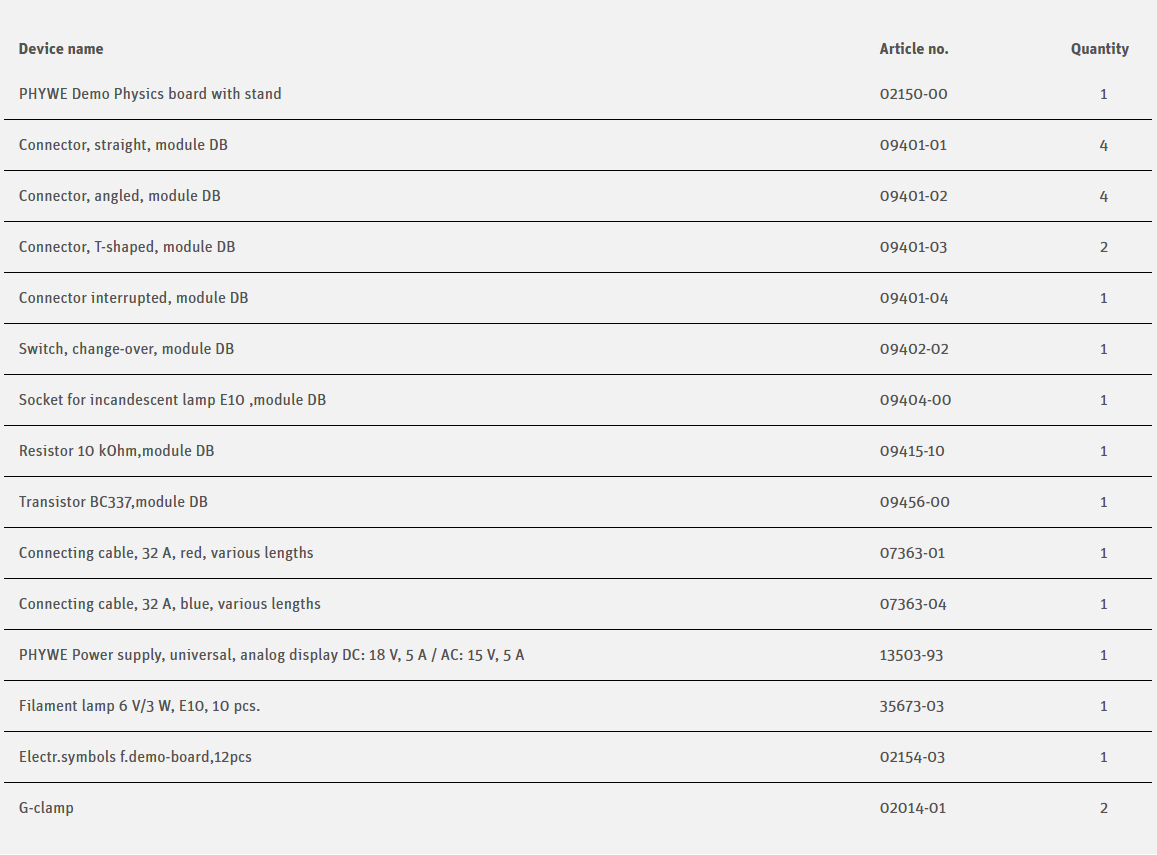

Scope of Delivery
