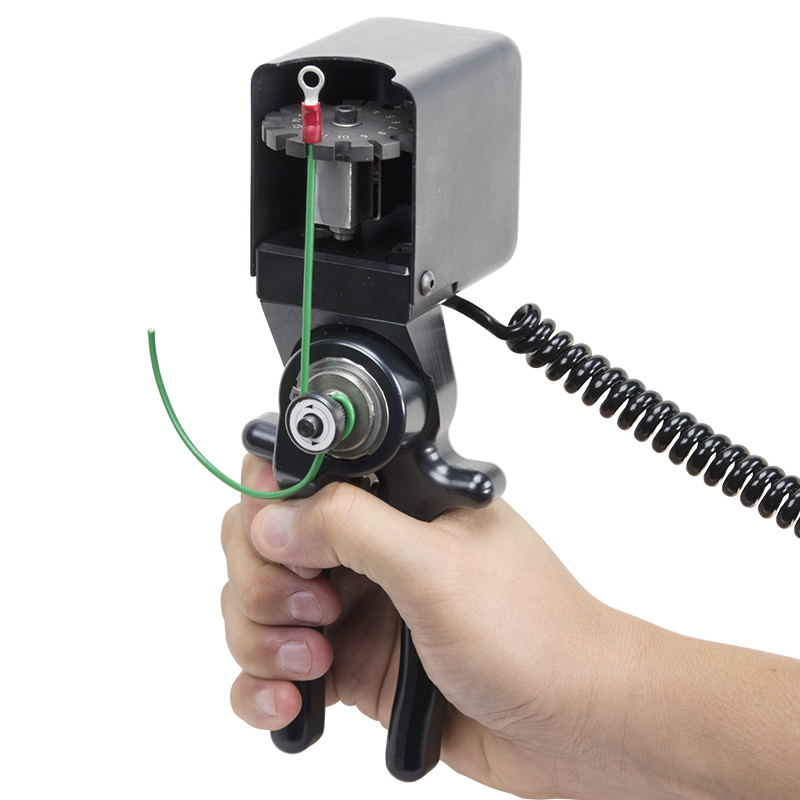

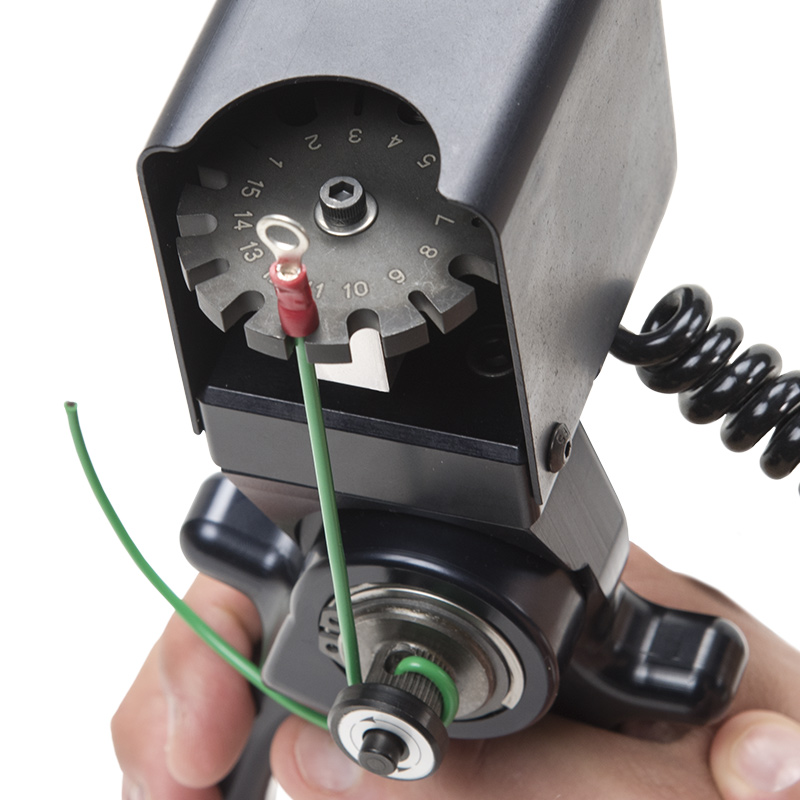

The MR06-200 wire crimp pull sensor is a hand-operated solution for measuring wire crimp pull-off forces. The ergonomic handles and convenient tensioning mechanism make field measurements a breeze for applications up to 200 lbF (1,000 N). Squeeze the handles together to increase tension on the sample until a break occurs. The peak force is recorded by a Mark-10 indicator. A rotating turret with slots of multiple sizes accommodates a wide range of wire diameters, up to 0.25 in. (6.4 mm).

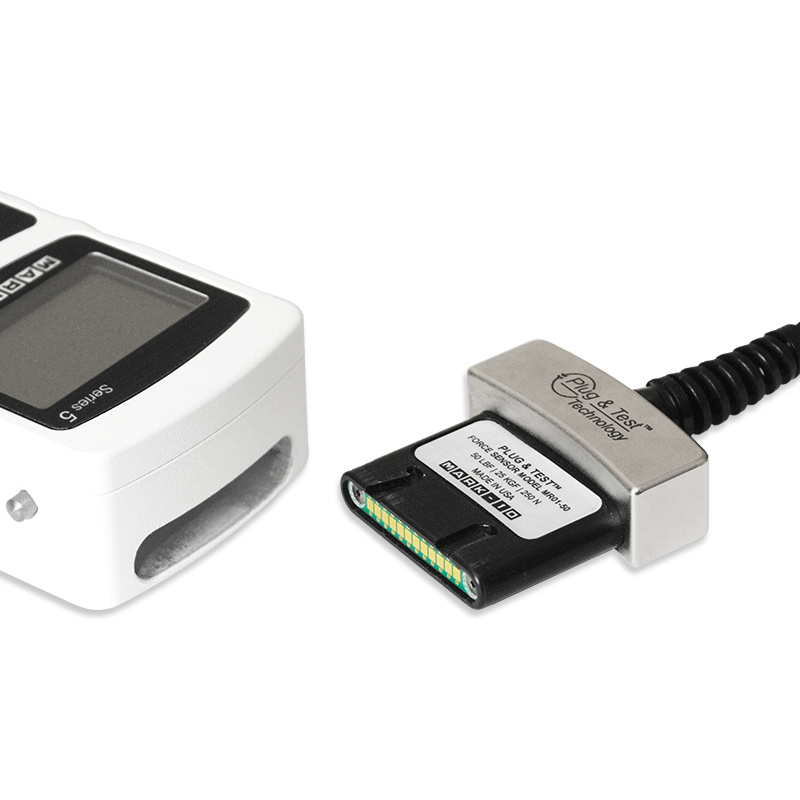

Compatible with Mark-10 indicators (sold separately), through unique Plug & Test® technology.

A combined certificate for the sensor and an indicator is available at time of order, part no. CERT-SI.

Features:

• Member of the Plug & Test® family of interchangeable sensors and indicators
• Ergonomic handles and convenient tensioning mechanism
• Measures pull forces
• NIST-traceable certificate of calibration with data is included. A combined certificate for the sensor and an indicator is available at time of order, part no. CERT-SI.
• Warranty: 3 years
