By dividing up the wave-front of a beam of light at the Fresnel mirror and the Fresnel biprism, interference is produced. The wavelength is determined from the interference patterns.
Contact us for details
Principle
By dividing up the wave-front of a beam of light at the Fresnel mirror and the Fresnel biprism, interference is produced. The wavelength is determined from the interference patterns.
Benefits
Tasks
Determination of the wavelength of light by interference
Learning objectives

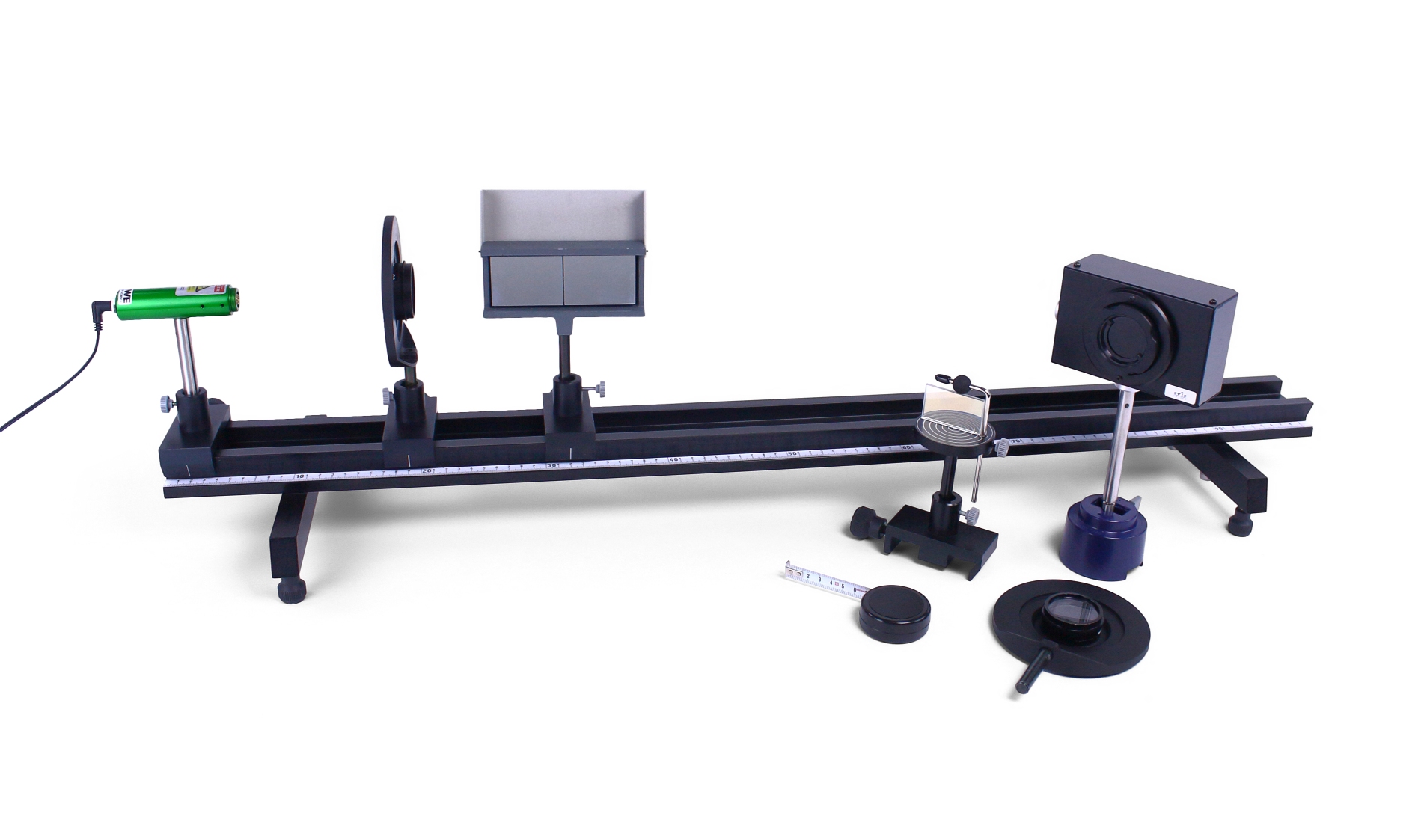

| Device name | Article no. | Quantity |
|---|---|---|
| Fresnel biprism | 08556-00 | 1 |
| Prism table with holder | 08254-01 | 1 |
| Fresnel mirror | 08562-00 | 1 |
| Lens made of glass, biconvex, f = + 20 mm | 08059-00 | 1 |
| Lens made of glass, biconvex, f = + 300 mm | 08054-00 | 1 |
| Component holder | 08043-00 | 3 |
| Optical bench expert, l = 1000 mm | 08282-00 | 1 |
| Base for optical bench expert, adjustable | 08284-00 | 2 |
| YAG Laser green, 1 mW, 532 nm for component holder | 08767-99 | 1 |
| Measuring tape, l = 2 m | 09936-00 | 1 |
| Digital array camera | 35612-99 | 1 |
| Barrel base expert | 02004-00 | 1 |
| Slide mount for optical bench expert, h = 80 mm | 08286-02 | 4 |
| Stand tube | 02060-00 | 1 |
| Ring for component holder | 08044-00 | 3 |
