Description

• Our latest research-grade soil sensor
• Measures moisture, temperature and EC
• Digital SDI-12 for easy system integration
• Rugged, buriable and low power
• Accurate monitoring of growing conditions
• Detachable and extendable cable system
• 5 year warranty

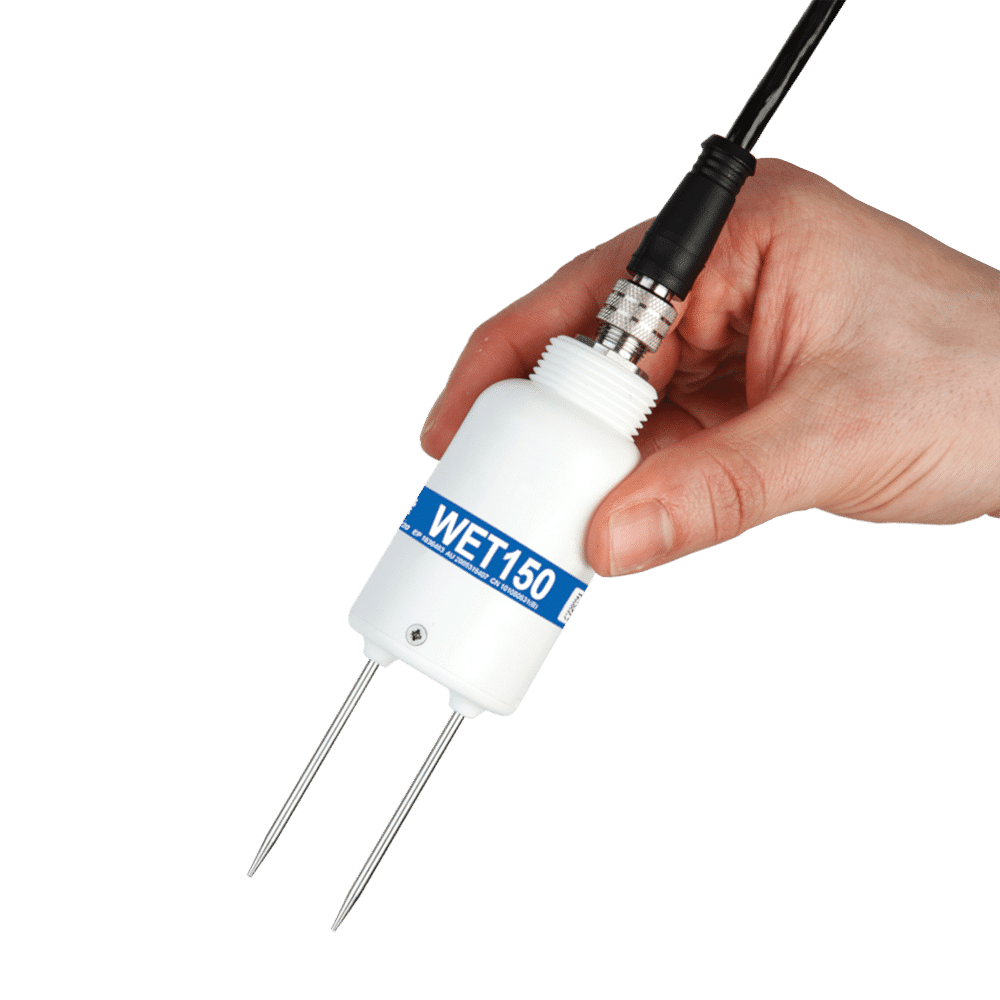

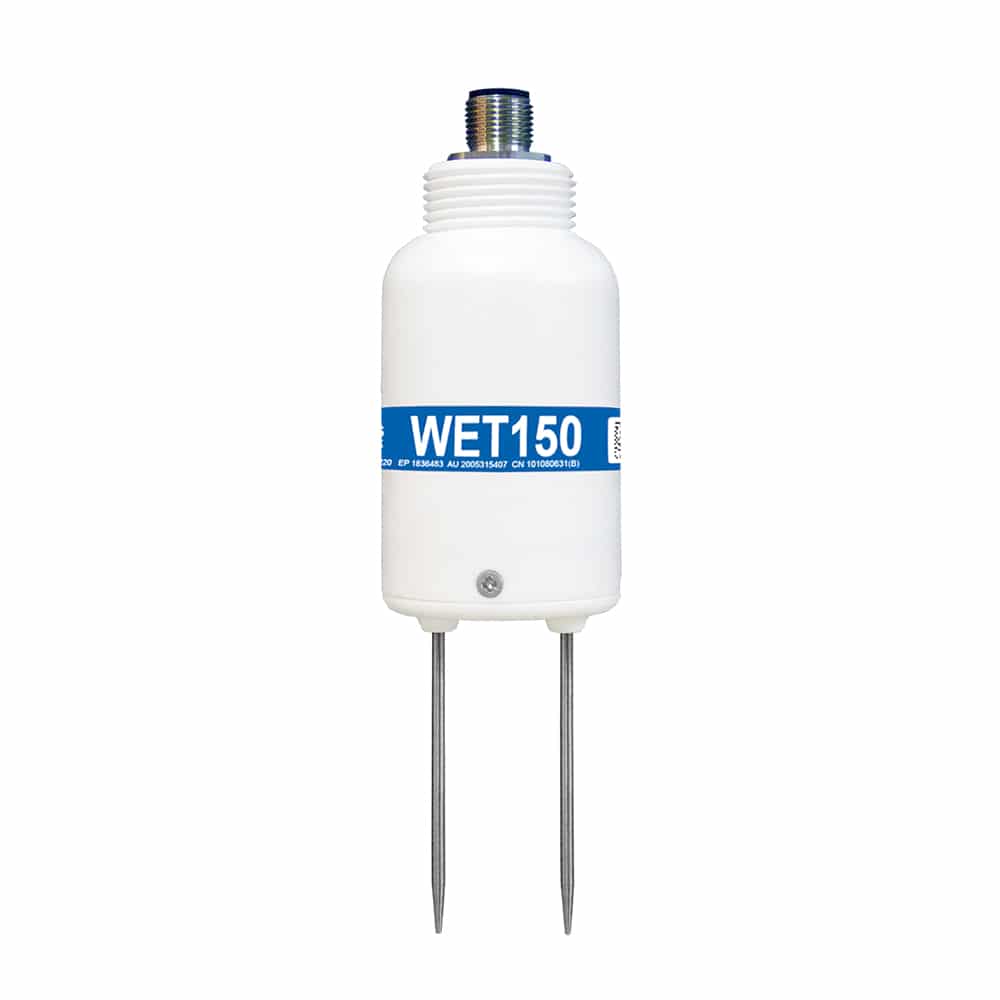

The digital multi-parameter WET150 soil sensor represents the culmination of forty years research and development at Delta-T Devices. Through a number of key design innovations it delivers research-grade accuracy and build quality at a price point not previously thought possible. It is the ideal sensor for research of soil conditions – and for integration into SDI-12 environmental and horticultural measurement/control systems.

A digital SDI-12 sensor that measures three crucial variables

When buried in soil or substrate the WET150 Sensor simultaneously measures three crucial variables that influence plant growth: moisture content, temperature, and electrical conductivity (EC) – a strong indicator of the general nutrient level.

A key strength of the WET150 is its ability to reliably calculate pore water conductivity (ECp), which is the ion content of the water available to the plant.

The WET150s patented sensor electronics produce research grade measurement accuracy with exceptional salinity and temperature stability – essential for critical control and irrigation decisions. When the sensor is buried, temperature measurement (essential for compensating the EC measurement – to obtain optimum accuracy) is taken directly from the root zone.

Accurate monitoring of soil and substrate conditions

When installed in growing media, the WET150 can provide the accurate data required to power effective SDI-12 enabled automatic precision irrigation and environmental control systems – enabling reduced use of water/fertilizer whilst improving yields and quality of produce.

The rugged watertight build of the WET150 also makes it ideal for use in field research and outdoor farming – sensors can be left buried over very long periods of time without loss of performance. WET150 sensors can also be buried at different depths to enable monitoring of soil moisture, temperature and EC profiles.

Digital SDI-12 Interface

The WET150 is a digital SDI-12 sensor (fully compliant with SDI-12 version 1.3 standards). SDI-12 is a standardised interface for connecting digital sensors to a master device – typically an SDI-12 compatible data logger, wireless node, controller, or computer. SDI-12 defines both the digital communications and sensor power standards.

A key strength of SDI-12 is that it supports the connection of multiple networked sensors to a single input on a SDI-12 enabled master device – cutting costs and complexity.

The WET150 (like all SDI-12 Sensors) is low power and features an integrated microprocessor that enables it to perform two way communication with an SDI-12 master device.

The WET150 outputs readings in a standard SDI-12 format which can be sent to, and recognised by, the master device. The inclusion of a microprocessor also gives the WET150 the ability to perform complex internal correction, compensation and averaging algorithms that enhance the quality of the data.

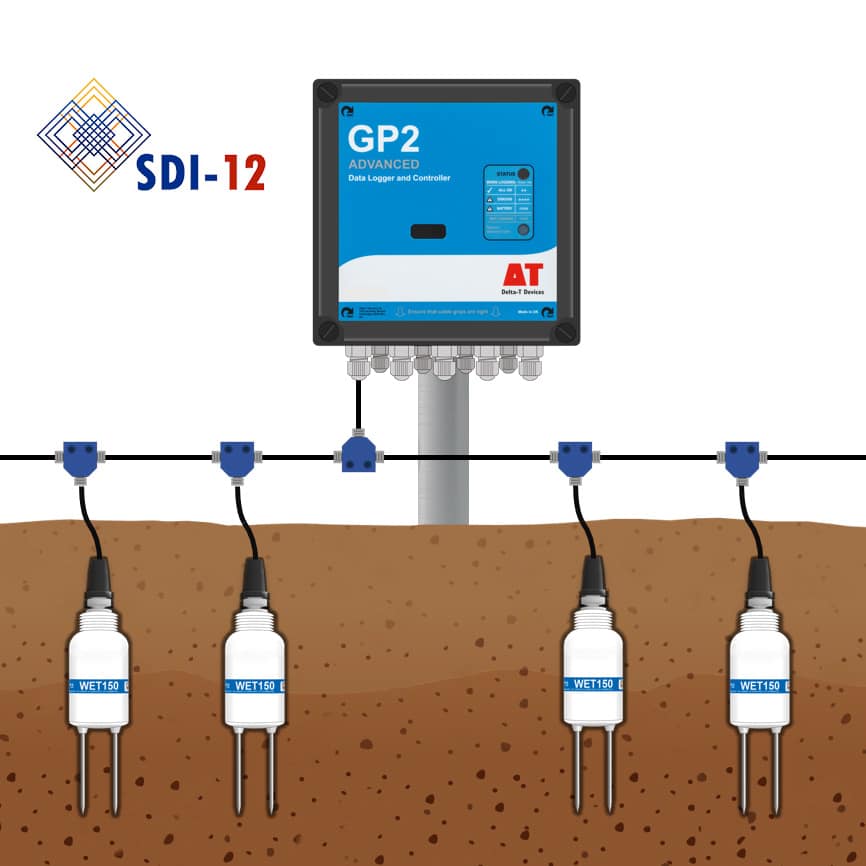

SDI-12 protocol is based on a master-slave configuration. When installed in an SDI-12 network, individually addressed WET150s (slaves) are sent data requests by the master device. These requests briefly wake all WET150s in the network – and result in a measurement and data sending response from the targeted WET150. When not responding to a master request, all WET150s remain in a dormant energy saving state.

The Key Benefits of SDI-12

• Use many sensors with just a single master device, reducing complexity and costs
• Low power systems that run off battery and are powered via the interface Bus
• Many parameters can be transmitted over simplified wiring
• No loss of accuracy over large cable runs.
• Ideal for wireless comms based applications
